110L Banbury Kneader Machine For Rubber Mixing Kneader Mixer Rubber

Name: 110L Banbury Kneader Machine For Rubber Mixing Kneader Mixer Rubber
Brand: HUALONG
Price: 250 USD

Buy cheap 110L Banbury Kneader Machine For Rubber Mixing Kneader Mixer Rubber product

Brand Name : HUALONG

Model Number : X(S)M150

Certification : ISO/CE

Place of Origin : Shandong, China

MOQ : 1 set

Price : $250,000.00 - $350,000.00/sets

Supply Ability : 10 Set/Sets per Month

Packaging Details : standard packing

Condition : New

Batch Time(times/hour) : 10 times/hour

Total Capacity(L) : 110L

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 2 years

Core Components : PLC, Engine, Bearing, Gearbox, Motor

Voltage : customized, customized

Dimension(L*W*H) : 6620*2850*4200

Year : 2022

Warranty : 1 Year

Key Selling Points : High Productivity

Power (kW) : 315 kW

Weight (KG) : 26000 KG

Showroom Location : United States

Applicable Industries : Manufacturing Plant, rubber and plastic industry

Machine type : Rubber Internal Mixer

Machine size : 110L, 140L

Machine color : blue/ white/ green/ as your request

After Warranty Service : Video technical support, Online support, Field maintenance

Discharging way : by motor

Rotor : two wing, four wing type

Sales mode : Factory direct sales

Advantages : high product capacity

Port : Qingdao

Contact Now

China factory banbury kneading equipment rubber banbury internal mixer kneader machinery

Model	X(S)M-80	X(S)M-110	X(S)M-160	X(S)M-250	X(S)M-270	X(S)M-420
Total volume of mixing chamber	80 two-wing	110 two-wing	147 four-wing	253 two-wing	250 four-wing	425 four-wing
Working volume of mixing chamber	60	82.5	110	140	188	319
Speed of rear rotor	40	40	4-40	17.24	4-40(6-60)	6-60
Speed ratio of rotors	1:1.15	1:1.15	1:1.16	1:1.16	1:1.17/1:1	1:1.5/1:1
Pressure of compressed air	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Consumption of compressed air	35	60	Hydraulic uper ram	60	Hydraulic uper ram	Hydraulic uper ram
Pressure of cooling water	03-0.4	03-0.4	03-0.4	03-0.4	03-0.4	03-0.4
Consumptionof cooling water	~25	~35	~45	~23	~100	~150
Main motor power	AC220	AC220(280)	DC500	AC250	DC1250(1500)	DC1250x2
Size	580025604200	662028504200	800033005260	710039054953	870043206160	1080049607040
Approx Weight	~22	~26	~36	~35	~50	~76

Main Data for 110L Rubber baubury mixer:

110L Banbury Kneader Machine For Rubber Mixing Kneader Mixer Rubber

Main advantages of Internal Mixer

110L Banbury Kneader Machine For Rubber Mixing Kneader Mixer Rubber

XM-110 new type internal mixer is an innovative and upgraded product.
Compared with the turning kneader of the same specification, it has high working efficiency, good sealing and compact structure,
small floor space, economical and applicable.

1. The upper jack bolt is driven by hydraulic double cylinders, which runs smoothly and can realize constant pressure control of
the rubber material, solves the phenomenon of air leakage pressure instability of the cylinder, and greatly improves the
quality of rubber mixing.
2. The speed of the rotor is increased, and the mixing time of the rubber material is shortened under the same rubber mixing
process requirements.

Effectively reduce unit energy consumption and improve production efficiency.
3. Workpieces involved in rubber mixing, such as rotors, upper jack bolts, discharge doors, mixing chambers, etc use
wear-resistant welding consumables, improve strength and wear resistance, prolong the service life of the workpiece, and
design the cooling water cavity to ensure the quality of rubber mixing.
4. The rotor end face seal is sealed with thin oil, and the sealing pressure oil cylinder is automatically adjusted without
manual intervention. Make sure there is no dust leakage.
5. The power of the equipment is changed to a frequency conversion motor with moderate power and energy saving. The reducer
adopts a double-drive hard-tooth surface reducer, and the safety factor is increased to ensure the safe operation of the
equipment.
6. The mixing chamber is changed to the bottom discharge method, which has a simple structure and can be linked with the upper
auxiliary machine, fully automatic PLC control, and truly realizes the closed automatic rubber mixing.

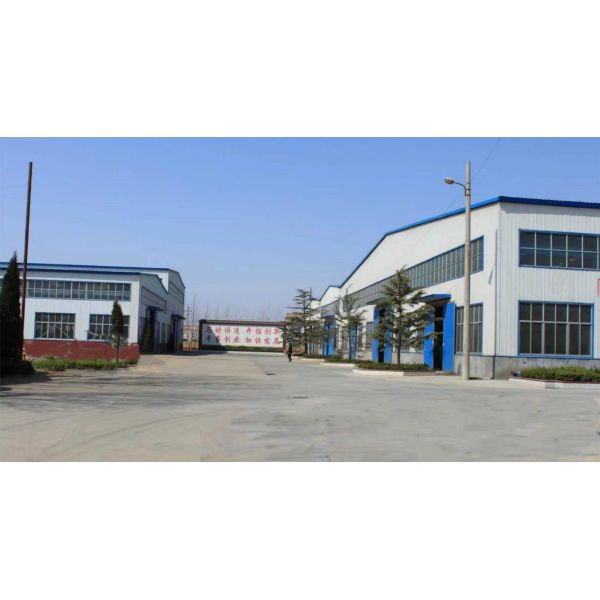

QINGDAO SHENGHUALONG RUBBER MACHINERY CO.,LTD was established in 1967,have employee more than five hundreds,
manufacturing for rubber machine.
As a rubber machinery manufacturer ,SHENGHUALONG has land for more than 50000 square meters, with a total assets of more than USD 100million, more than 500 employees, and 60 mechanical engineers,

The company is one of the largest private enterprises engaging in professional produce rubber machine .
We 8 meters gantry type milling machine,
TK6913B CNC boring and milling machine
TPX6213 floor boring
TPX6113 milling and boring machine
Vertical machining center
CY-K630 CNC lathe
2.5 Meters vertical lathe and other large advanced processing equipment
We mainly produce following machinery.
Radial tire equipment
XK-660 Rubber open mixing mill
42 to 65.5 inch double mold vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, Rubber mixing mill series, Extrusion and filter series
Tyre tube, flap, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber reclaim sheet line and so on,
We can also design and manufacture for various non-standard rubber machinery and equipment according to the customers requirement.
Our company always follows the market concept of “Market demand first , Customer first.
Till now,We have exported to more than 40 countries,enjoy a good reputation in the world market.
